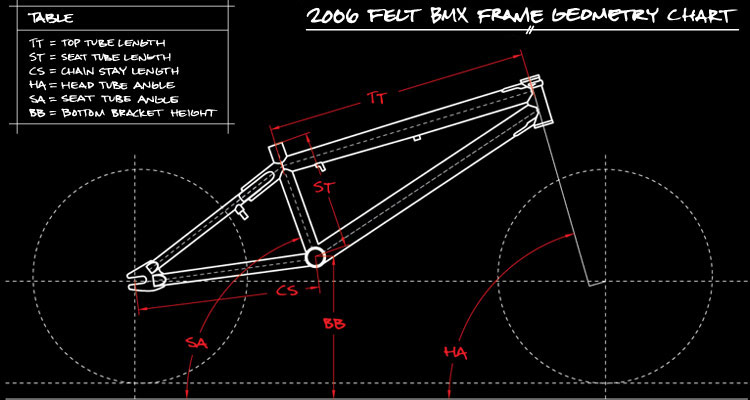

MODEL
HA
SA
TT LENGTH
ST LENGTH
BB HEIGHT
CS LENGTH
SEAT POST
SECTOR MINIR MINI
72.5
71
450 (17.72")72”)
220 (8.66")8.66”)
275 (10.83").83”)
340 (13.39")39”)
22.2
SECTOR JR. R JR
72.5
71
467.5 (18.40")8.40”)
220 (8.66")8.66”)
280 (11.02").02”)
340 (13.39")39”)
22.2
SECTOR EXPERT R EXPERT
73.5
71
485 (19.09")09”)
235 (9.25")9.25”)
286 (11.26").26”)
361 (14.21")21”)
22.2
SECTOR PRO X R PRO X
74
70.5
525 (20.66")66”)
240 (9.44")9.44”)
298 (11.73").73”)
377 (14.84")84”)
27
SECTOR XL R XL
74
70.5
535 (21”))
240 (9.44")9.44”)
301 (11.85").85”)
390 (15.35")35”)
27
SECTOR 24 R 24
74
70.5
541 (21.29")29”)
290.7 (11.44") (11.44”)
293 (11.53").53”)
404 (15.9")9”)
27
CALIBER PRO R PRO
74
70.5
508 (20”))
240 (9.44")9.44”)
298 (11.73").73”)
377 (14.84")84”)
27
REVOLT PRO PRO
74
70.5
508 (20”))
240 (9.44")9.44”)
298 (11.73").73”)
377 (14.84")84”)
25.4

COLORS
 VIPER RED
FRAME
 7000 SERIES ALUMINUM, MINI SIZED 17.72” TTL,TAPERED TUBING, RECTANGULAR CHAIN STAYS, FORGED 3D DROPOUTS, WEIGHT LIMIT 75lbs./34kg
FORK
 100% 4130 CR-MO, BUTTED 1” THREADLESS STEER TUBE, 1” BLADES, WELD-IN NUT, 5MM DROPOUTS
STEM
 FELT “MINI DROP ZERO” RACE DESIGN, CNC-MACHINED ALLOY THREADLESS 1”, ZERO DROP
HANDLEBAR
 FELT “MINIBAR” ALLOY ONE PIECE NO CROSSBAR
GRIPS
 JR. SIZE KRATON RUBBER
HEADSET
 1” AHEADSET
CRANKS
 TRUVATIV 3-PIECE ALUMINUM, 145MM
PEDALS
 CAGE TYPE ALLOY/ALLOY
BB SET
 CARTRIDGE TYPE
CHAINRING
 ALLOY, 3/32” X 40T
CHAIN
 KMC Z610HX 1/2 X 3/32
FREEWHEEL
 MAINDRIVE 1/2 X 3/32 CP 16T
RIMS
 ALEX VP16 SINGLEWALL ALUMINUM 1-1/8”
HUBS
 T “DOUBLE-DRIVE” ALUMINUMFLIP-FLOP 28H FRONT, 32 REAR, 3/8” FRONT & REAR AXLE, LOOSE BALL
TIRES
 FELT “SLIP-NOT” DIRT/TRAIL, 20X1-1/8” FRONT & REAR
SADDLE
 FELT UNI-TYPE RACE SADDLE, 3-PC VINYL COVER WITH ALLOY POST
POST
 ALLOY, PART OF SADDLE
CLAMP
 SINGLE-BOLT ALLOY RACE
BRAKES
 TEKTRO MINI V-TYPE, FORGED ALUMINUM, LINEAR SPRING
PEGS
 N/A
DETANGLER
 N/A
EXTRAS
 2-PIECE PADSET, CHAIN TENSIONERS
